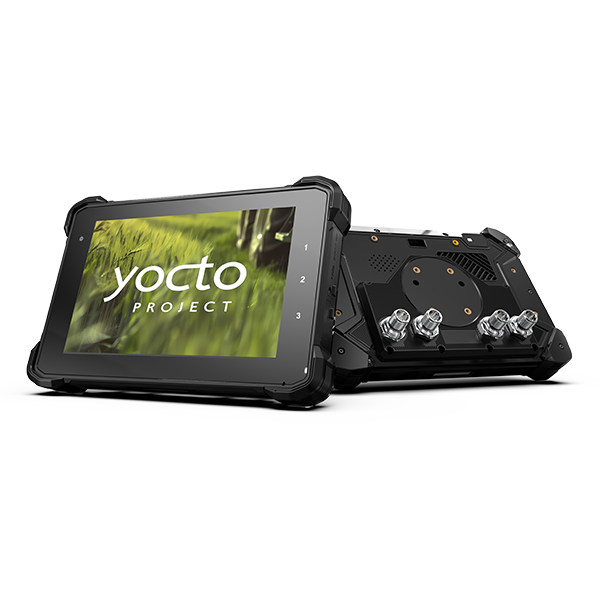

VT-7AL
Yocto System
Based on Yocto system, it supports rich tools and processes for engineers to develop software more effectively according to their specific needs.
Qt Platform
Support Qt 5.15 platform and various applications written based on Qt. Provide test demo programs written in Qt, which makes interface debugging and development more convenient and flexible.
Real-time Communication
Built-in Wi-Fi/ Bluetooth /GNSS/4G functions making tracking and management of device status easier.
IP67 Rugged Design
Rugged IP67 design and 800 nits high brightness screen guarantee the application in varieties of harsh environments, suitable for vehicle, logistics, security and other industries.
ISO 7637-II
ISO 7637-II standard transient voltage protection;
Withstand up to 174V 300ms car surge impact;
DC8-36V wide voltage power supply.
Strong Compatibility
With rich interfaces of RS232, CAN Bus, RS485, GPIO etc., customizable to meet different needs from users.
Wide Application Field
With rugged design and rich interfaces, guarantee the application of IoT, IoV and some industries in the harsh environments.
Specification
| System | |
| CPU | Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz |
| GPU | Adreno™ 702 |
| OS | Yocto |
| RAM | LPDDR4 3GB (default)/4GB (optional) |
| Storage | eMMC 32GB (default)/64GB (optional) |
| Functional Module | |
| LCD | 7 Inch IPS Panel, 1280 × 800, 800 nits |
| Screen | Multi-point Capacitive Touch Screen |
| Audio | Integrated microphone, Integrated speaker 2W |
| Sensor | Acceleration, Gyro sensor, Compass, Ambient light sensor |
| Interface | 1 × USB3.1 (can not be used simultaneously with USB Type-A) |
| 1 × Micro SD card, Support up to 1T | |
| 1 × Micro SIM Card slot | |
| Standard 3.5mm earphone connector | |
| Extended Interface (Docking station version) | |
| RS232 | × 2 |
| POWER | × 1 (8-36V) |
| USB TYPE-A | USB2.0 ×1 |
| (can not be used simultaneously with USB Type-C) | |
| GPIO | Input × 3, Output × 3 (standard); |
| Input × 2, Output × 2 (optional) | |
| ACC | × 1 (0-30V) |
| CANBUS | × 1 (optional) |
| ANALOG INPUT | × 2 (optional) |
| RS485 | × 1 (optional) |
| RJ45 | × 1 (optional) |
| AV | × 1 (optional) |
| Communication | |
| Bluetooth | 2.1 EDR/3.0 HS/4.2 LE/5.0 LE |
| WLAN | 802.11a/b/g/n/ac; 2.4GHz&5GHz |
| GNSS (NA Version) | GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS NavIC, L1 + L5; Internal Antenna |
| GNSS (EM Version) | GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS, L1; Internal Antenna |
| 2G/3G/4G(US Version) | LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 |
| LTE TDD: B41 | |
| 2G/3G/4G(EU Version) | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| LTE TDD: B38/B40/B41 | |
| WCDMA: B1/B2/B4/B5/B8 | |
| GSM/EDGE: 850/900/1800/1900 MHz | |
| Physical Characteristics | |
| Power | DC8-36V (ISO 7637-II compliant) |
| Battery | 3.7V, 5000mAh battery (only for docking station ver.) |
| Dimensions (WxHxD) | 207.4 × 137.4 × 30.1mm |
| Extended Interface (M12 connector version) | |
| RS232 | × 2 |
| USB | × 1 |
| POWER | × 1 (8-36V) |
| GPIO | Input × 3, Output × 3 |
| ACC | × 1 (0-30V) |
| CANBUS | × 1 (optional) |
| RS485 | × 1 (optional) |
| RJ45 | × 1 (optional) |
| Environment | |
| Drop test | 1.2m drop-resistance |
| IP rating | IP67 |
| Vibration test | MIL-STD-810G |
| Operating temperature | -10°C ~ 65°C (14°F ~ 149°F) |
| Storage temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
