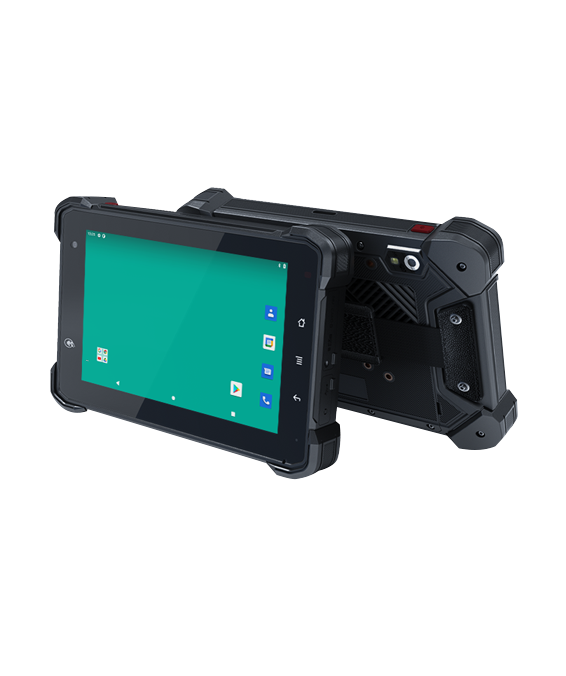

VT-7 GA/GE

Introduction

Rugged tablet certified by Google Mobile Services.

Powered by Android 11 system and equipped with Octa-core A53 CPU, it’s main frequency support up to 2.0G.

Product Details

Product Tags

Google Mobile Services

Certified by Google GMS. Users can better enjoy Google services and ensure the functional stability and compatibility of the device.

Mobile Device Management

Support several MDM management software, such as AirDroid, Hexnode, SureMDM, Miradore, Soti, etc.

Sunlight Readable Screen

800cd/m² higher brightness specifically in bright conditions with indirect or reflected bright light in harsh environment both in and out-of-vehicle. 10-point multi-touch screen allows for zooming, scrolling, selecting, and provides a more intuitive and seamless user experience.

All-round Ruggedness

TPU material corner drop protection provides all-round protection for tablet. Compliance with IP67 rating dust-proof and waterproof, 1.5m drop resistance, and anti-vibration and shocks standard by US Military MIL-STD-810G.

Docking Station

Security lock hold the tablet tightly and easily, ensures the safety of tablet. Built in smart circuit board to support customized functional interfaces such as: RS232, USB, ACC etc. The newly added button can switch the function of USB TYPE-C and USB TYPE-A.

Specification

System
CPU Octa-core A53 2.0GHz+1.5GHz
GPU GE8320
Operating System Android 11.0 (GMS)
RAM LPDDR4  4GB
Storage 64GB
Storage Expansion Micro SD, Support up to 512 GB



Communication
Bluetooth Integrated Bluetooth 5.0(BR/EDR+BLE)
WLAN 802.11a/b/g/n/ac; 2.4GHz&5GHz
Mobile Broadband
(North America Version)
GSM: 850MHZ/900MHZ/1800MHZ/1900MHZ
WCDMA: B1/B2/B4/B5/B8
LTE FDD: B2/B4/B7/B12/B17
Mobile Broadband
(EU Version)
GSM: 850MHZ/900MHZ/1800MHZ/1900MHZ
WCDMA: B1/B2/B4/B5/B8
LTE FDD: B1/B2/B3/B7/20/B28
LTE TDD: B38/B39/B40/B41
GNSS GPS, GLONASS, BeiDou
NFC Supports Type A, B, FeliCa, ISO15693



Functional Module
LCD 7 Inch Digital IPS Panel, 1280 x 800, 800 nits
Touchscreen Multi-point Capacitive Touch Screen
Camera (Optional) Front: 5.0 megapixel camera
Rear: 16.0 megapixel camera
Sound Integrated microphone
Integrated speaker 2W
Interfaces (On Tablet) Type-C, SIM Socket, Micro SD Slot, Ear Jack, Docking Connector
Sensors Acceleration, Gyro sensor, Compass, ambient light sensor



Physical Characteristics
Power DC 8-36V, 3.7V, 5000mAh battery
Physical Dimensions (WxHxD) 207.4×137.4×30.1mm
Weight 815g



Environment
Gravity Drop Resistance Test 1.5m drop-resistance
Vibration Test MIL-STD-810G
Dust Resistance Test IP6x
Water Resistance Test IPx7
Operating Temperature -10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)



Interface (Docking Station)
USB2.0 (Type-A) x1
RS232 x2(Standard)
x1(Canbus Version)
ACC x1
Power x1 (DC 8-36V)
GPIO Input x2
Output x2
CANBUS Optional
RJ45 (10/100) Optional
RS485 Optional
RS422 Optional
