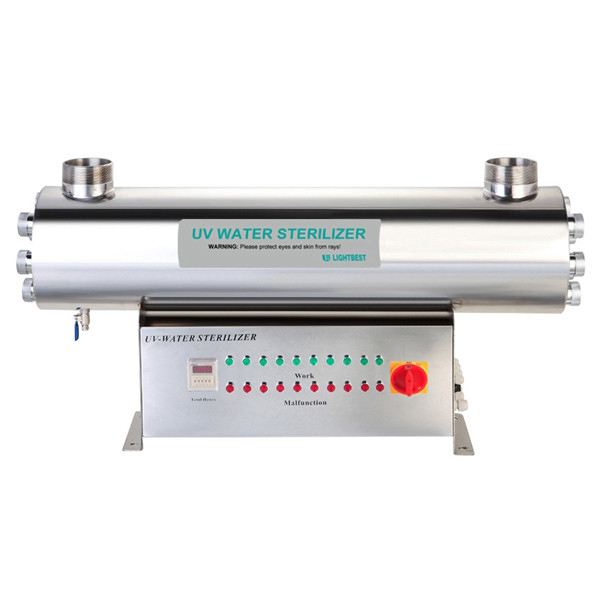

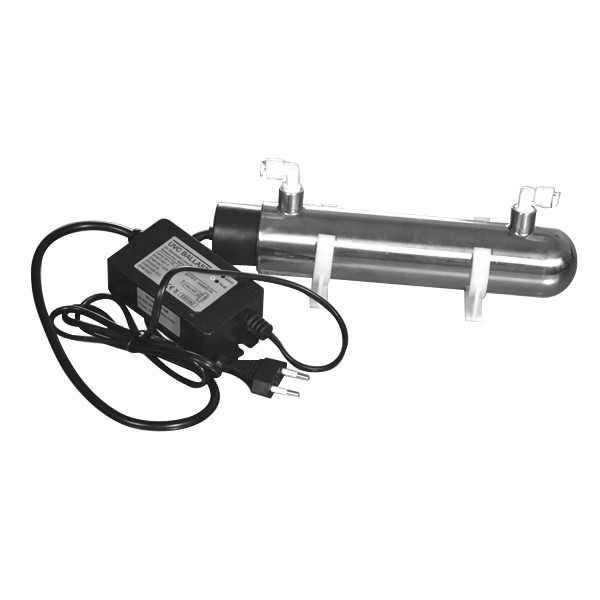

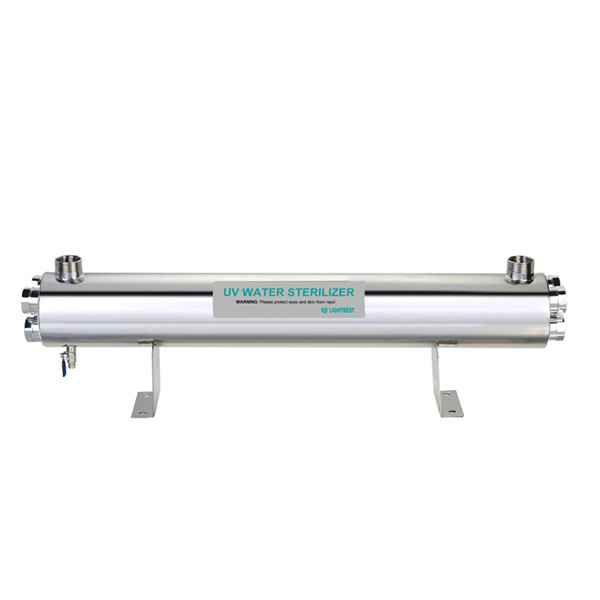

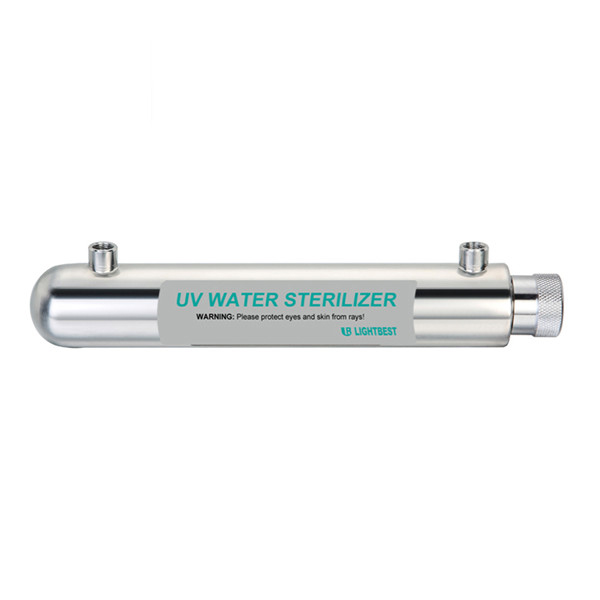

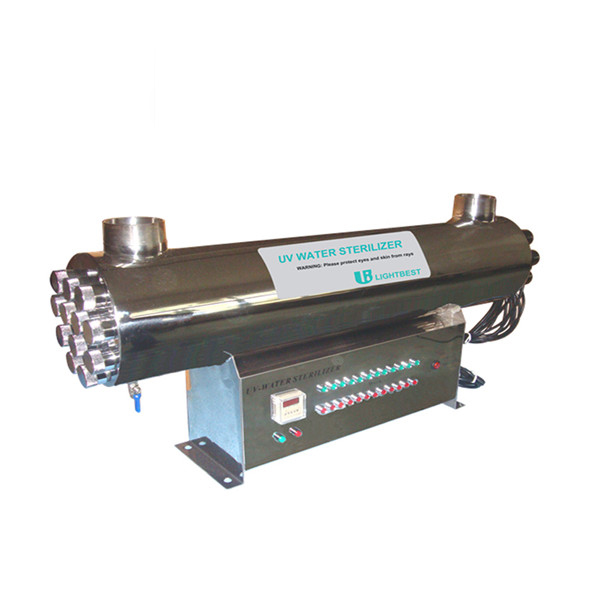

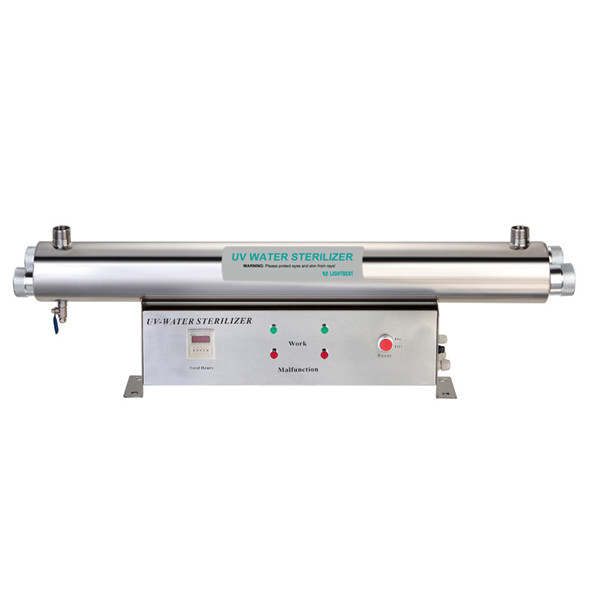

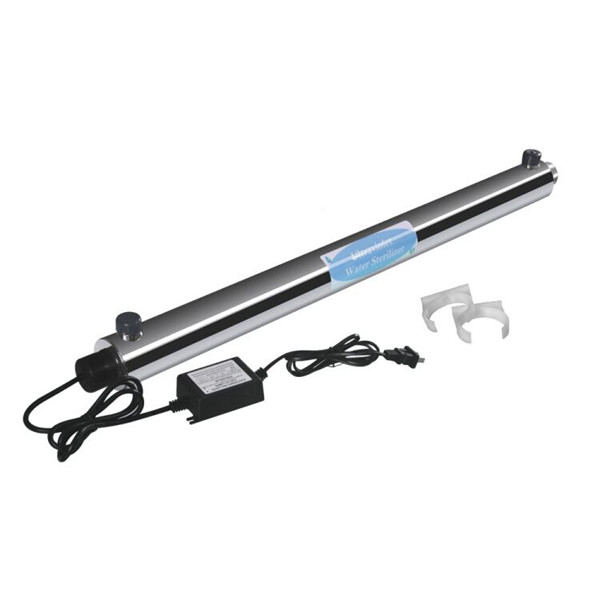

Stainless steel UV sterilizer

Introduction

Stainless steel UV sterilizer is a widely used water disinfection and purification system, by emitting UV light with the peak wavelength of 253.7nm (commonly called 254nm or Ozone-free/L), sterilizer kills 99-99.99% microorganisms including bacteria, viruses, fungi and protozoa such as cryptosporidium, giardia, SARS, H5N1, etc. within 1 to 2 seconds.And there is no need to add chemical bactericide, avoiding undesirable color, taste or odor. It does not generate harmful by products, brings no secondary pollution to water and ambient environment.

Product Details

Product Tags

Model No. Flow Rate Inlet/Outlet Lamp Power Lamp Model Quartz Sleeve Reactor Size Support Material Control Panel
m³/h GPM (w) (mm)
SUV-G1S 0.1 0.5 Female 1/4″ 6 GPH212T5L/4P QS23200245 Ø50.8*260 White plastic NA
SUV-G1 0.2 1 Female 1/4″ 11 GPH212T5L/4P QS23200245 Ø50.8*260 White plastic NA
SUV-G1L 0.2 1 Female 1/4″ 12 GPH287T5L/4P QS23200295 Ø50.8*315 White plastic NA
SUV-G2 0.4 2 Male 1/2″ 16 GPH330T5L/4P QS23200360 Ø63.5*370 White plastic NA
SUV-G6 1.4 6 Male 1/2″ 25 GPH550T5L/4P QS23200580 Ø63.5*590 White plastic NA
SUV-G8 1.8 8 Male 3/4″ 30 GPH810T5L/4P QS23200875 Ø63.5*885 White plastic NA
SUV-G10 2.3 10 Male 3/4″ 40 GPH843T5L/4P QS23200875 Ø63.5*885 White plastic NA
SUV-G12 2.7 12 Male 3/4″ 55 GPH910T5L/4P QS23200940 Ø63.5*950 White plastic NA
* Optional parts as below:
SUS304 or SUS316 reactor housing/chamber
Power supply 220V or 110V, Control panel, Manual or automatic cleaning system
UV lamp working indicator, UV lamp failure alarm, UV intensity monitor
Water temperature monitor, Time accumulator
* Customized sterilizers to your needs



Model No. Flow Rate Inlet/Outlet Lamp Power Lamp Model Quartz Sleeve Reactor Size Support Material Control Panel
m³/h GPM (w) (mm)
SUV-G24S 5.5 24 Male 1″/flange 110 GPH910T5L/4P QS23200940 Ø108*950 SUS304 NA
SUV-G24 5.5 24 Male 1″/flange 110 GPH910T5L/4P QS23200940 Ø108*950 SUS304 A
SUV-G36S 8 36 Male 1 1/2″/flange 165 GPH910T5L/4P QS23200940 Ø133*950 SUS304 NA
SUV-G36 8 36 Male 1 1/2″/flange 165 GPH910T5L/4P QS23200940 Ø133*950 SUS304 A
SUV-G48S 11 48 Male 1 1/2″/flange 220 GPH910T5L/4P QS23200940 Ø133*950 SUS304 NA
SUV-G48 11 48 Male 1 1/2″/flange 220 GPH910T5L/4P QS23200940 Ø133*950 SUS304 A
SUV-G72 16 72 Male 2″/flange 330 GPH910T5L/4P QS23200940 Ø168*950 SUS304 A
SUV-G96 22 96 Male 3″/flange 440 GPH910T5L/4P QS23200940 Ø219*950 SUS304 A
SUV-G120 30 120 Male 4″/flange 550 GPH910T5L/4P QS23200940 Ø275*950 SUS304 A
SUV-G144 33 144 Male 4″/flange 660 GPH910T5L/4P QS23200940 Ø275*950 SUS304 A



Model No. Flow Rate Inlet/Outlet Lamp Power Lamp Model Quartz Sleeve Reactor Size Support Material Control Panel Size
(mm)
m³/h GPM (w) (mm)
SUV-M60 60 264 6″/flange 155*4 GHO64T5L/4P QD25221700 Ø273*1700 SUS304 690*250*205
SUV-M80 80 352 6″/flange 155*5 GHO64T5L/4P QD25221700 Ø273*1700 SUS304 690*250*205
SUV-M100 100 440 6″/flange 155*6 GHO64T5L/4P QD25221700 Ø273*1700 SUS304 600*1280*300
SUV-M125 125 550 6″/flange 155*7 GHO64T5L/4P QD25221700 Ø273*1700 SUS304 600*1280*300
SUV-M150 150 660 8″/flange 155*8 GHO64T5L/4P QD25221700 Ø325*1700 SUS304 600*1280*300
SUV-M200 200 880 8″/flange 155*10 GHO64T5L/4P QD25221700 Ø377*1700 SUS304 600*1280*300
SUV-M300 300 1321 10″/flange 155*14 GHO64T5L/4P QD25221700 Ø426*1730 SUS304 600*1280*300
SUV-M400 400 1761 10″/flange 155*16 GHO64T5L/4P QD25221700 Ø529*1760 SUS304 600*1500*400
SUV-M600 600 2642 12″/flange 155*20 GHO64T5L/4P QD25221700 Ø780*1760 SUS304 600*1500*400

Stainless steel UV sterilizer is a widely used water disinfection and purification system, by emitting UV light with the peak wavelength of 253.7nm (commonly called 254nm or Ozone-free/L), sterilizer kills 99-99.99% microorganisms including bacteria, viruses, fungi and protozoa such as cryptosporidium, giardia, SARS, H5N1, etc. within 1 to 2 seconds.

And there is no need to add chemical bactericide, avoiding undesirable color, taste or odor. It does not generate harmful by products, brings no secondary pollution to water and ambient environment.

Features

1. Can quickly and effectively kill all kinds of bacteria, viruses and other microorganisms

2. Chlorides in water can be effectively degraded by photolysis.

3. Simple operation and convenient maintenance;

4. Small floor area, large water treatment;

5. No pollution, strong environmental protection, will not produce toxic side effects;

6. Low investment cost, low operating cost, easy installation of equipment;

7. The unique inner wall treatment process is designed by using the principle of optics to maximize the use of ultraviolet light in the cavity and improve the sterilization effect

Application areas

· Water disinfection;tap water/direct drinking water/pure water/hotel/restaurant water, etc.

· Seawater and fresh water for seedling and breeding (fish, eel, shrimp, abalone, shellfish, etc.).

· Aquatic processing purification and disinfection, shellfish purification and disinfection, fish processing disinfection and processing water, etc.

· Water disinfection for food processing industry, juice, milk, beverage, beer, edible oil and all kinds of canned and cold drink products, etc.

· Pure water for biological, chemical, pharmaceutical and cosmetic production.

· Ultra-pure water for the electronics industry.

· Sewage disinfection, municipal sewage, reclaimed water, hospital water, oilfield water injection.

· Circulating water disinfection: swimming pool water, landscape water and industrial circulating cooling water

· Disinfection of agricultural irrigation water and removal of algae in large water volume.

· Water disinfection for military bases, field operations, aircraft, ships and submarines.

Maintenance

1. Testing monthly or before each use.

2. Lamp replacement is recommended every 8000 hours of operation. After 8000 hours, the lamp may still light, but the UV intensity has diminished.

3. Cleaning of the quartz sleeve once 3-6 months with alcohol or a mild detergent.
