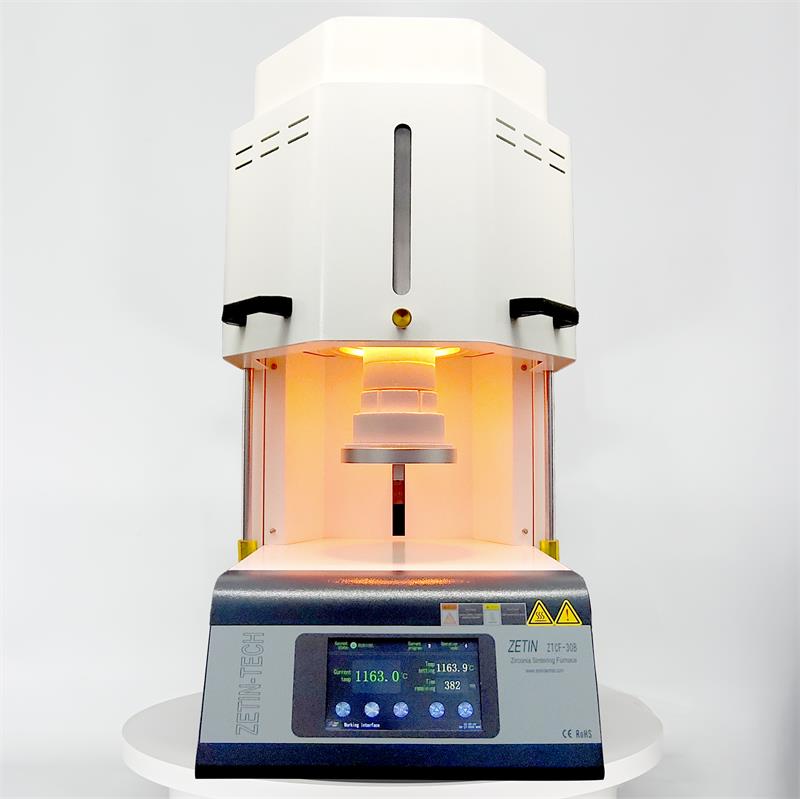

SPEED/FAST SINTERING FURNACE
Description
fast and slow integrated sintering furnace, its sintering speed is 5 times higher than the ordinary sintering furnace. And its sintering effect is perfect, the temperature control is accurate, the internal temperature of the furnace is uniform, and the automatic lifting tray design has good sealing performance. At the same time, there is also a program with ordinary sintering speed, which can be operated flexibly according to individual actual conditions and improve work efficiency.
Technical Parameters
| Fast Sinter | 2 hour (including heating, heat hold, and cooling), 80 units crowns |
| Conventional sinter | 3 layers of crucible, 150 units |
| Max.Temperature | 1730℃ |
| Temperature control accuracy | ±1℃ |
| Touch Screen | 7 ” TFT |
| Max power consumption | 3 KW |
| Power Supply | 220 V 50/60 HZ Or 110 V 50/60 HZ |
| Heating element | High purity heater specially for dentistry |
| Capacity | Ø 110 ×120 mm |
| Conventional sintering program | No.1 |
| Rapid sintering program | No.2 |
| Cleaning program | No.40 |
| Program | 40 programs can be stored ,with power-off memory function |
| Size (L*W*H) | 450× 500× 850 mm3 |
| Net weight | 85 KG |
Features
◑ Fast sintering program only need 2 hours to finish, 80 units can be sintered at one time;
◑ Using normally sintering program one time can stack 3 crucibles , and total can sinter 150 units ;
◑ High purity heating elements mode of MoSi2 ( Silicon molybdenum rods ), this material is no pollution and last for longtime
◑ PID intelligent temperature control system ensures the high temperature control accuracy. The actually temperature error at ±1℃;
◑ Can Store 40 Programs;
◑ 7-TFT touch screen can fully display all the operations, so very easy to set up the program, friendly human-machine interface.
◑ Longer service life Insulation materials with good thermal insulation effect ensures a uniformity temperature circumstance ;
◑ With power-off memory function, it can start working from any phase of any program.
