SD-P09 Free Punching Free Trimming Fully Automatic Pulp Molded Tableware Machine

Introduction

The SD-P09 fully automatic energy-saving biodegradable equipment uses Germany Siemens PLC programmable control system to control the operations of all working procedures, The equipment is featured with steady performance, advanced process technology, easy and handy operations as well as high-grade automation.The mould are made of hard alloy aluminum plate. The material density is not easy to wear. The fixed mold on the net mold of the forming mold uses alloy copper to prevent corrosion and burrs, which make sure the free trimming products also have smooth edge.The equipment is with high production output, high efficient and manufactured in accordance with international standards.

Product Details

Product Tags

Main Feature

Fully automatic plant fiber pulp molding machine

Pneumatic and hydralic dual control,energy saving and high efficiency.

Patented free punching free trimming technology, automatic collection, intelligent counting

International leading technology, the SD-P09 can produce deep-cavity pulp cups and cup lid.

Accurate Product Weight Control

Automatically and adjustable controlled by PLC.

Product Detail

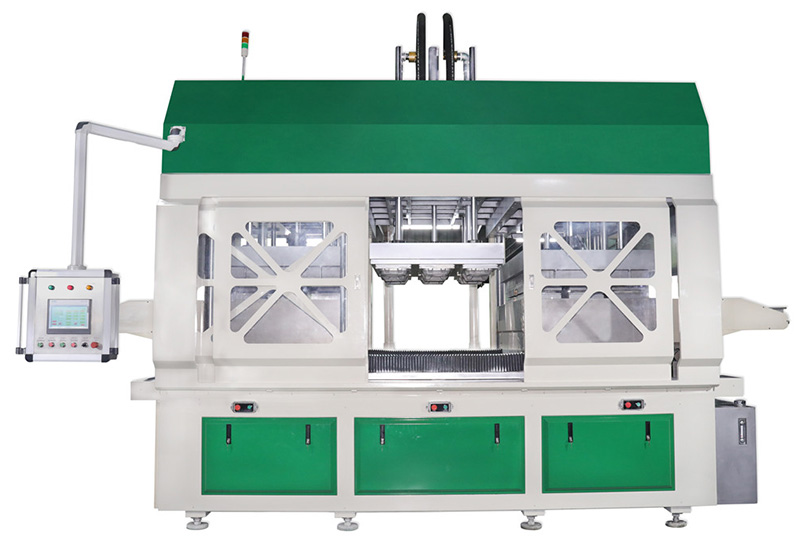

SD-P09

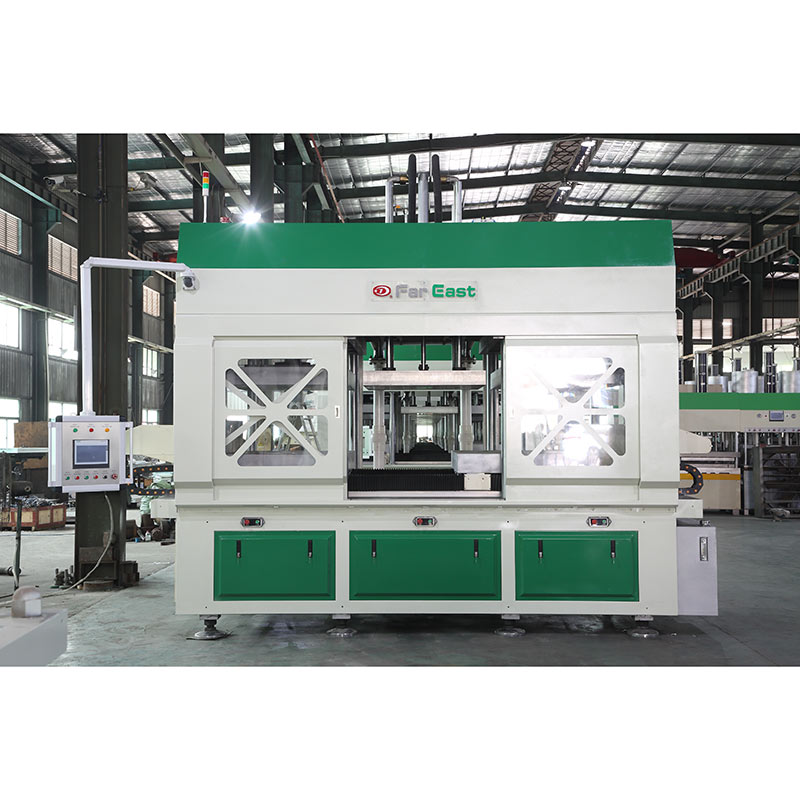

The Main Forming Machine

vdv

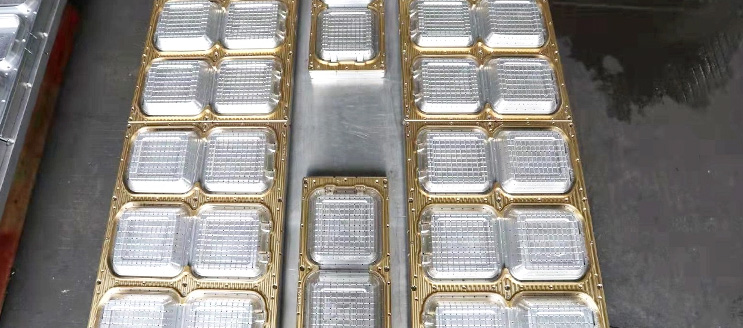

Production Mould

jtyj (2)

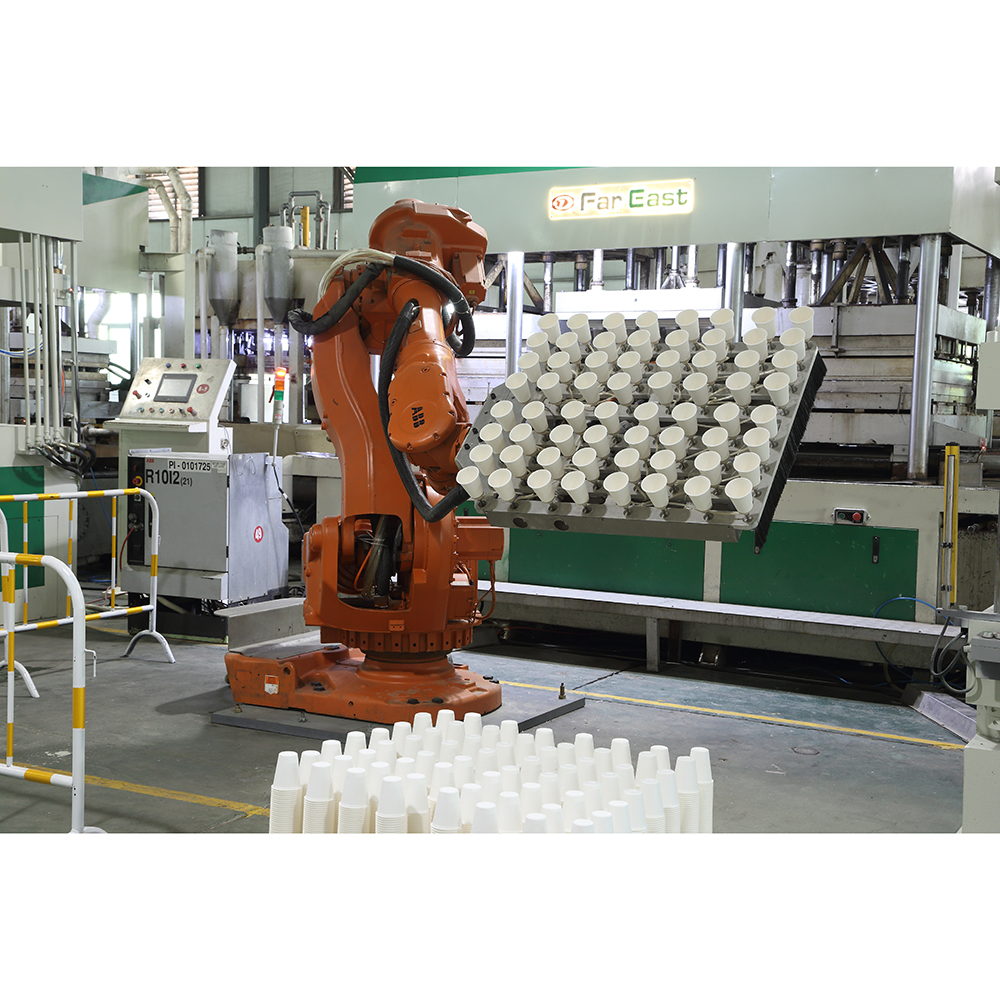

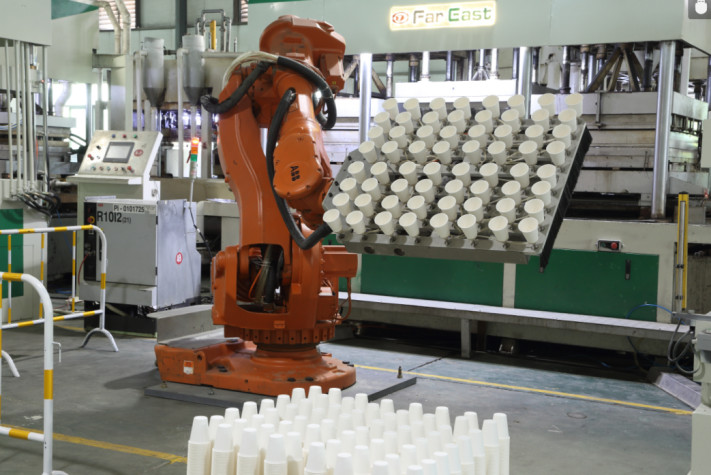

Robot Arm(Optional Equipment)

Product Specifications

Automatic

fully-automatic
Designed Capacity 500-700kg/day
forming type vacuum suction
Mould Material: Aluminium Alloy:6061
Raw material: plant fiber pulp (any paper pulp)
Drying method heating in mold(by eleatric or by oil )
Auxiliary Equipment Power For Each Machine: 25.5KW For Each Machine
Vacuum Requirement For Each Machine: 9m3/min/set
Air Requirement For Each Machine: 1.3m3/min/set
After-sales Service Free spare parts, Video technical support,  installation guidance, commssioning
Place of Origin Xiamen city ,China
Finished Products: Disposable ECO-friendly Tableware
Accepted Payment Type L/C ,T/T
Accepted Payment Currency CNY,USD

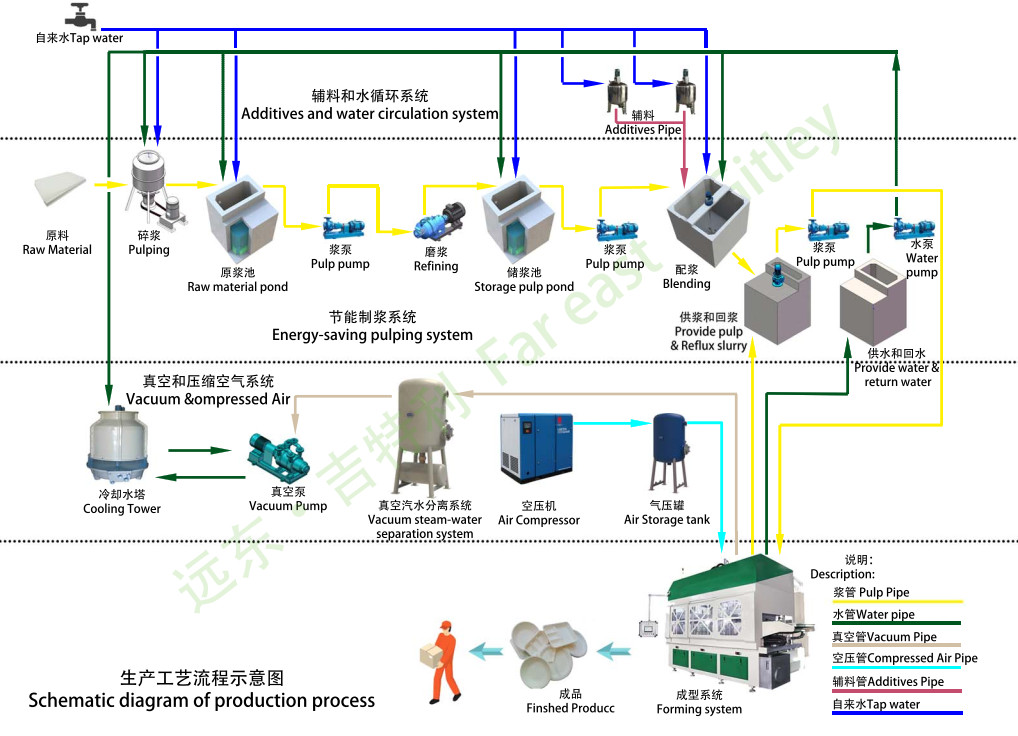

Engineering Drawing

dfb

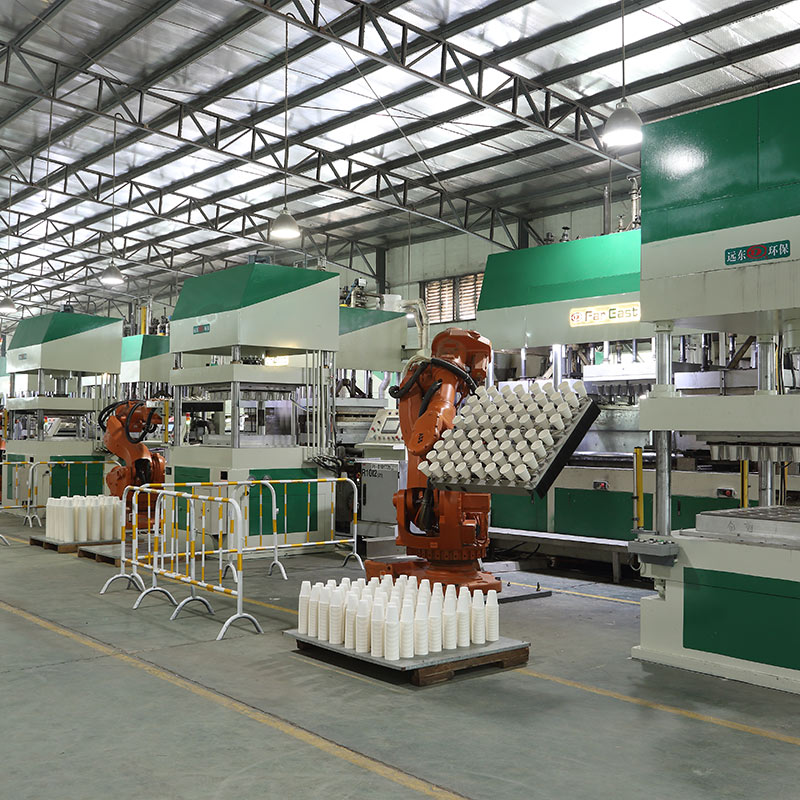

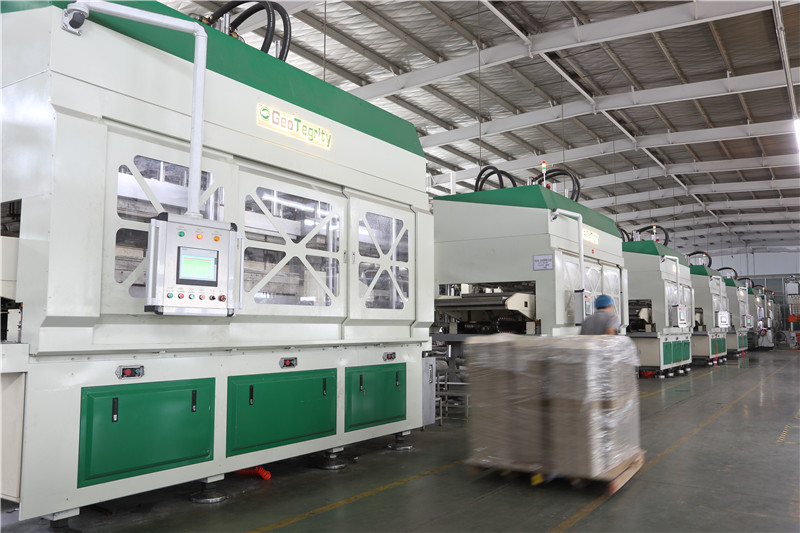

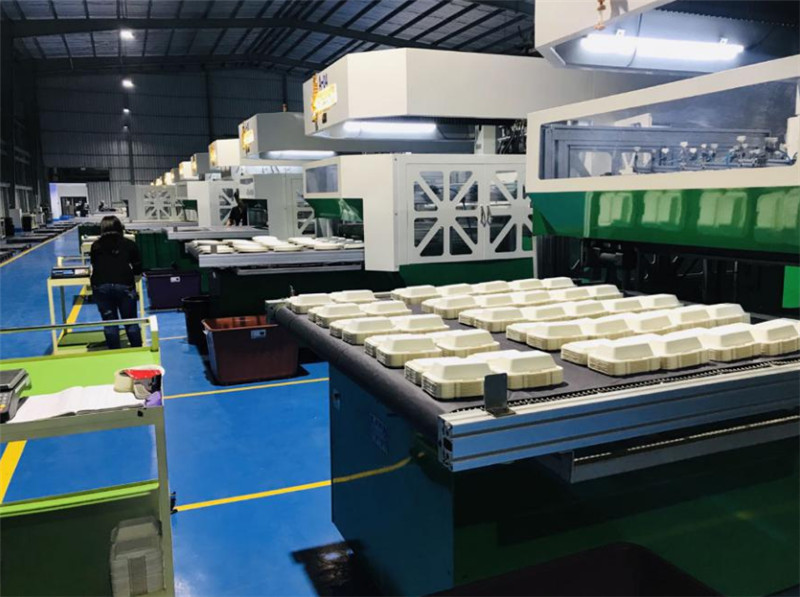

Cooperation Case

yt
vd
jty
htr (1)
jryj

Application

The SD-P09 energy saving fully automatic pulp molding tableware machine is mainly applied for producing the disposable plate, bowl, tray, box, cup and other food packaging items. It can meet your different customization needs. Whether it is a simple plate or a deep cup,cup lid, it can be perfectly presented.

Semi Automatic Equipment DRY-2017 (1)
Semi Automatic Equipment DRY-2017 (3)
vd
Semi Automatic Equipment DRY-2017 (4)

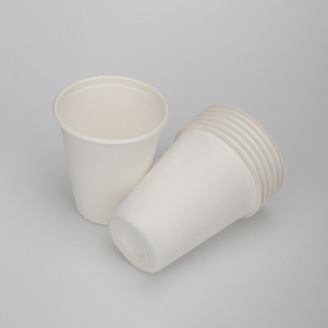

ddv

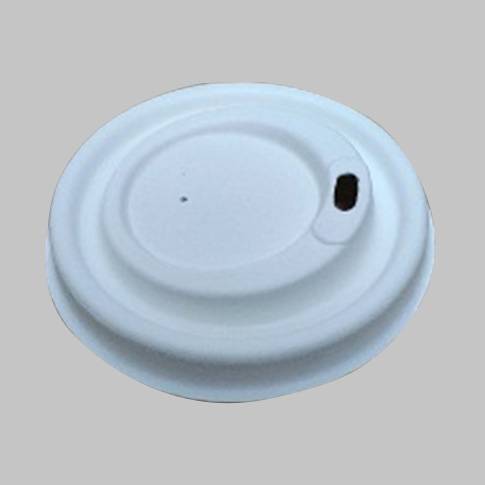

vdvd
