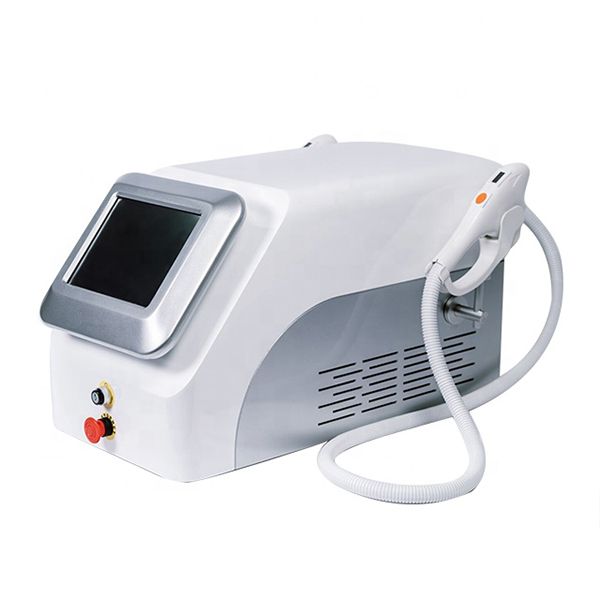

Portable IPL OPT Hair Removal Skin Rejuvenation Acne Removal

Introduction

IPL Therapy System follows selective photothermolysis principle. Targeted tissues will be destroyed according to targeted chromophore’s selective absorption to light.

搜索

复制

Product Details

Product Tags

What is IPL?

Precipulse IPL Therapy System follows selective photothermolysis principle. Certain wavelength that can be used in and absorbed by targeted tissue. Targeted tissues will be destroyed according to targeted chromophore’s selective absorption to light. What’s more, the pulse width shall be smaller than or equal to targeted tissue’s thermal relaxation time, then its damage to surrounding tissues will be minimized because of insufficient time for heat delivery.



Three Hair Removal Modes

Traditional IPL: Fast hair removal

SHR: SHR stands for Super Hair Removal which utilizes the most advanced technology of “in- motion” to carry out pain-free treatment. SHR is able to output 10 shots at 1 second and make treatment movable. Combining with perfect semi-conductor cooling system, this machine brings totally pain free and comfortable treatment feeling. It is more effective than traditional IPL machine.

FP: FP=Fly Point FP mode was developed by R&D Department of . FP outputs a series of pulses during operation in different sensitive areas, such as upper lips, hairline, and front ear etc. By using FP mode to do hair removal, the treatment is more accurate and effective, especially for thin hairs. More comfortable treatment experience on small areas will be realized.



Advantage:

★Precipulse, accurate energy output (deviation <5%)

★Three treatment heads: HR; SR; VR(Optional)

★Three treatment modes, traditional IPL, FP (FlY POINTS) mode, SHR mode for different diseases

★2000W IPL power supply system, discharge frequency up to 10Hz

★Strong cooling system and 100W power guarantees continuous working for one hour and a half

★Mini and delicate treatment handpiece, easy to output

★TDK-Lambda switching power supply system

★USB reserved connector for future upgrading

★Epidermis will be maximally protected and gradual increasing of epidermis temperature is guaranteed

★Target tissue reaches treatment temperature rapidly so as to guarantee therapeutic result

★Totally comfortable treatment, no side-effect







Specification

Place of Origin Beijing, China Model Number IPL-NYC-103
Type IPL Handle HR, SR,VR (choose one)
Spot size (HR)  (HR): 16x57mm2 (SR): 8x34mm2(VR): 8x34mm2  Wavelength (HR): 690-1200mm(SR): 560-1200nm(VR):420-1200nm
Pulse width (HR) 4ns Weight 30kg
