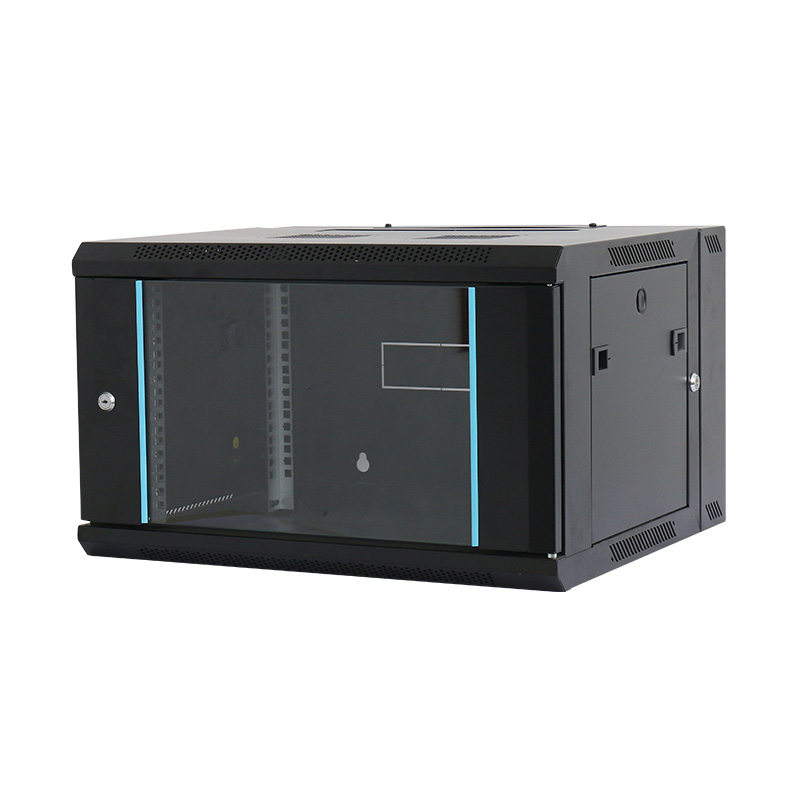

MZH Wall-Mounted Cabinets
Standard Specification
♦ ANSI/EIA RS-310-D
♦ IEC60297-2
♦ DIN41494: PART1
♦ DIN41494: PART7
Details
|
Materials |
SPCC cold rolled steel |
|
Model Series |
MZH Series Wall Mounted Cabinet |
|
Width (mm) |
600 (6) |
|
Depth (mm) |
450(4).500(A).550(5).600(6) |
|
Capacity (U) |
6U.9U.12U.15U.18U.22U.27U |
|
Color |
Black RAL9004SN (01) / Gray RAL7035SN (00) |
|
Thickness of Steel (mm) |
Mounting profile 1.5mm others 1.0mm |
|
Surface finish |
Degreasing, Silanization, Electrostatic spray |
|
Lock |
Small round lock |
Product Specification
| Model No. | Description |
| MZH.6■■■.90■■ | Toughened glass front door, door border without holes, small round lock |
| MZH.6■■■.91■■ | Toughened glass front door, with round hole vented arc door border, small round lock |
| MZH.6■■■.92■■ | Plate steel door, small round lock |
| MZH.6■■■.93■■ | Hexagonal reticular high density vented plate door, small round lock |
| MZH.6■■■.94■■ | Toughened glass front door, with slanted slot door border, small round lock |
Remarks: First■ denotes depth second & third■■ denotes capacity. When fourth & fifth■■ is“00” denotes Gray color (RAL7035) “01”denotes Black color (RL9004).
MZH Cabinets Assembly Drawing
Main Parts:
① Frame
② Mounting profile
③ Side panel
④ Cable entry cover
⑤ Back panel
⑥ Toughened glass front door
⑦ Toughened glass front door with slanted slot door border
⑧ Toughened glass front door with round hole vented arc door border
⑨ Hexagonal reticular high density vented plate door
⑩ Plate steel door
Payment & Warranty
Payment
For FCL (Full Container Load), 30% deposit before production, 70% balance payment before shippment.
For LCL (Less than Container Load), 100% payment before production.
Warranty
1 year limited warranty.
Shipping
• For FCL (Full Container Load), FOB Ningbo, China.
• For LCL (Less than Container Load), EXW.
FAQ
What are the functions of the network cabinet?
In addition to reducing the device footprint, the network cabinet also has the following functions:
(1) Greatly improve the overall aesthetic degree of the machine room.
For example, the 19-inch design can accommodate a large number of network devices, simplifying the layout of the equipment room and improving the overall appearance of the equipment room.
(2) Effectively ensure the safety and stability of the equipment.
The cooling fan of the network cabinet can send the heat emitted by the equipment out of the cabinet to ensure the safe and stable operation of the equipment. In addition, network cabinets also have the effect of enhancing electromagnetic shielding, reducing working noise, and even filtering air.
