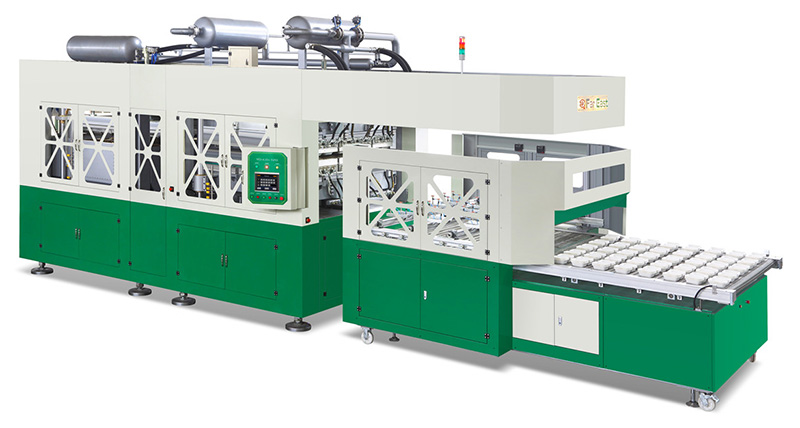

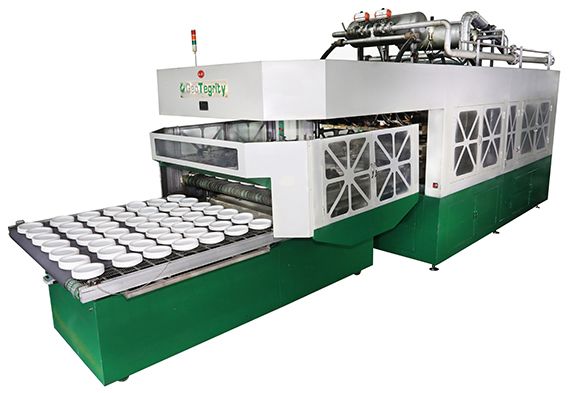

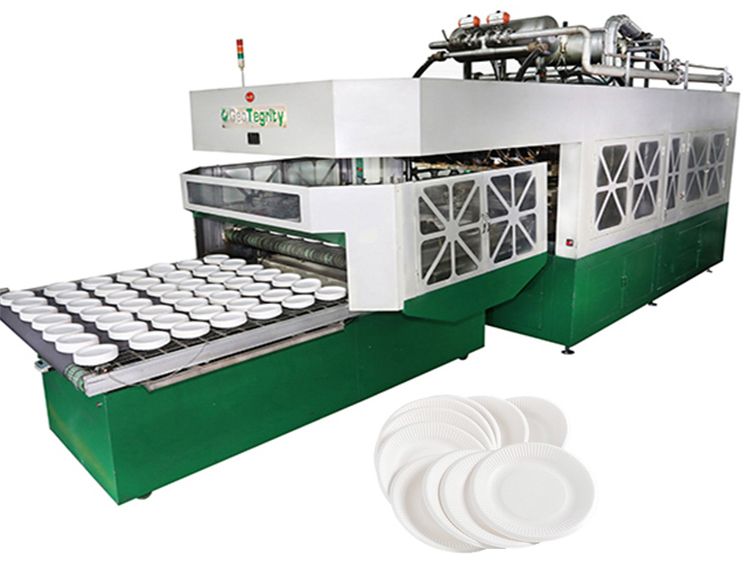

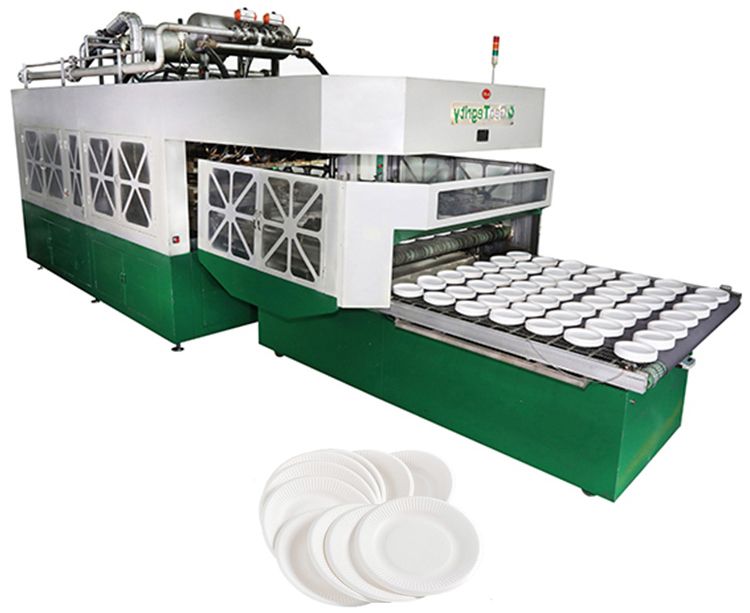

LD-12-1850 Fully Automatic Free Trimming Punching Biodegradable Sugarcane Bagasse Pulp Molding Tableware Paper Food Packaging Plate Cup Machine

Introduction

The LD-12-1850 fully automatic energy-saving biodegradable sugarcane bagasse plant fiber tableware paper pulp moulding plates cups boxes bowls trays making machine.

Product Details

Product Tags

Main Feature

Fully automatic pulp molded tableware machine

Patented free punching free trimming technology, automatic collection, intelligent counting,15% lower production cost than semi-automatic equipment

The large work table(1850mm×1850mm) greatly increases the daily output of finished products.

Automatically and adjustable controlled by PLC.

Pneumatic and hydralic dual control,energy saving and high efficiency.

Accurate Product Weight Control

2-Stage Machine

Product Detail

LD-12-1850

The Main Forming Machine

1850 mold

Production Mold

Product Specifications

Automatic

fully-automatic
Designed Capacity 1000-1500kg/day
forming type vacuum suction
Mould Material: Aluminium Alloy:6061
Raw material: plant fiber pulp (any paper pulp)
Drying method heating in mold(by eleatric or by oil )
Auxiliary Equipment Power For Each Machine: 57KW For Each Machine
Vacuum Requirement For Each Machine: 15m3/min/set
Air Requirement For Each Machine: 1.5m3/min/set
After-sales Service Free spare parts, Video technical support,  installation guidance, commssioning
Place of Origin Xiamen city ,China
Finished Products: Disposable ECO-friendly Tableware
Accepted Payment Type L/C ,T/T
Accepted Payment Currency CNY,USD

Engineering Drawing

sd

Cooperation Case

jyt (3)
jyt (2)
jyt (1)
tyjy
dfb

Application

The LD-12 series fully automatic pulp molded tableware machine is mainly applied for producing eco friendly disposable plates, bowls, trays, boxes, and other biodegradable food packaging items. Its large work table and fully automatic operation will bring you super high productivity.

Semi Automatic Equipment DRY-2017 (1)
Semi Automatic Equipment DRY-2017 (3)
vd
Semi Automatic Equipment DRY-2017 (4)

Catelog Download
