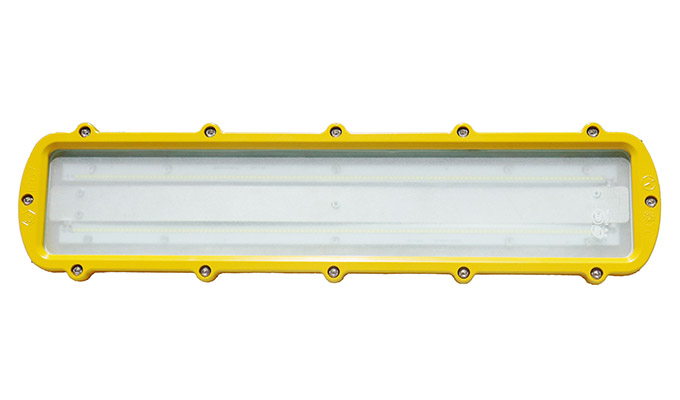

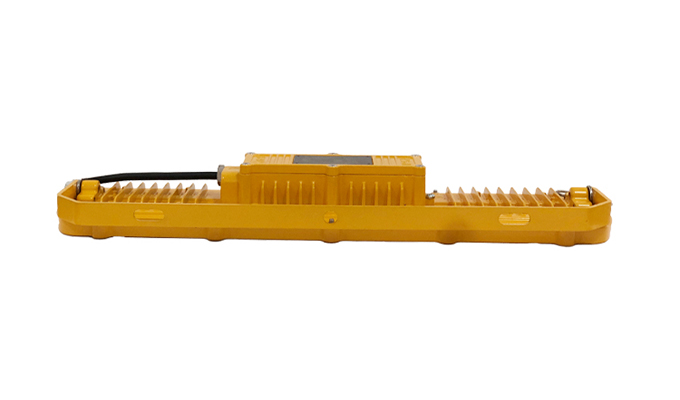

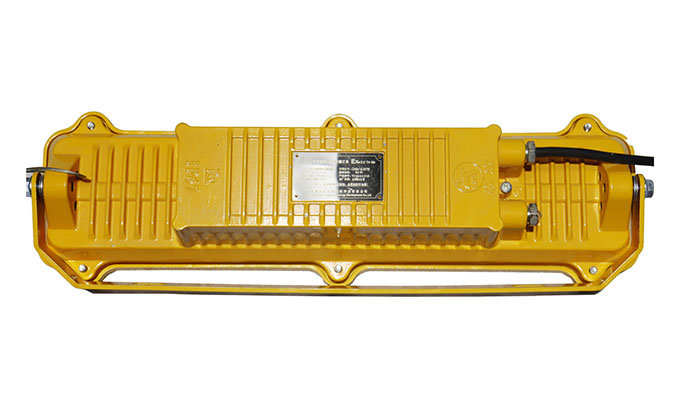

IEC Certificate Explosion-proof LED Light with IP67

Introduction

Explosion-proof lighting is suitable for large-scale flammable and explosive places such as petrochemical plants, workshops and offshore oil platforms.

Product Details

Product Tags

Parameter

Model TY/ZLED101 TY/ZLED102 TY/ZLED103 TY/ZLED104 TY/ZLED105 TY/ZLED106
Rated Power 40W/50W/60W/2*40W 40W/50W 40W/50W/60W/80W 40W/50W/60W 80W/100W/120W 60W/80W/100W
Working Voltage AC72V-280V  DC12V-42V 50-60HZ
Power Factor 0.95
IP Grade IP67
Anti-corrosion Grade WF2
Color Temperature 5500K-6500K
Irradiation Angle 120°-180°
Introducing Device G3/4 inlet specification, suitable for φ8mm-φ11mm
Installation Height Different power can be installed at a height of 4.5 meters -40 meters
Ex Marking Ex d IIB T4 Gb
Executive Standard GB3836.1/GB3836.2/GB3836.3/IEC60079-0/IEC60079-1

Light Source

Rated Power(W)

Luminous Flux(Lm)

Life Span(h)

LED

40

5500

100000

LED

50

6600

100000

LED

60

7700

100000

LED

80

11000

100000

LED

100

13200

100000

LED

120

13200

100000

LED

150

16500

100000

LED

200

22000

100000

LED

300

33000

100000

LED

400

44000

100000

Features

  • Explosion-proof type with the highest explosion-proof grade, which can work safely and reliably in flammable and explosive dangerous places.
  • Adopt high-intensity gas discharge lamp as the light source, with high luminous efficiency, and the average service life is more than 10,000 hours.
  • The use of prismatic tempered glass, no glare, can effectively avoid discomfort and fatigue caused by work and construction personnel.
  • Adopt light-shielding board and carry out precise light distribution design, improve the utilization rate of light efficiency, and have good energy saving effect.
  • Adopt integrated full-tight structural design and the latest surface treatment technology, beautiful appearance, easy installation, rainproof and water spray, the lamp shell will never corrode or rust, and can be used in harsh environments such as high temperature, humidity and various corrosive conditions. long-term use.
  • The shell is made of high-strength aluminum alloy material, which has the ability to resist strong collision and impact.
  • Various installation methods such as boom type and wall-mounted type are suitable for the lighting needs of different work sites.

Application

11.2
oil factory
chemical factory
oil station

Summary

This product is strictly controlled in accordance with the ISO9001: 2000 international quality management system standard to ensure that the product quality is higher than the national standard and fully meets the design requirements. The product is guaranteed for 3 years (the light source is guaranteed for one year), within 3 years from the date of purchase , Any failure of the product under normal use will be maintained free of charge by our company. However, the shipping cost should be paid by the buyer.
