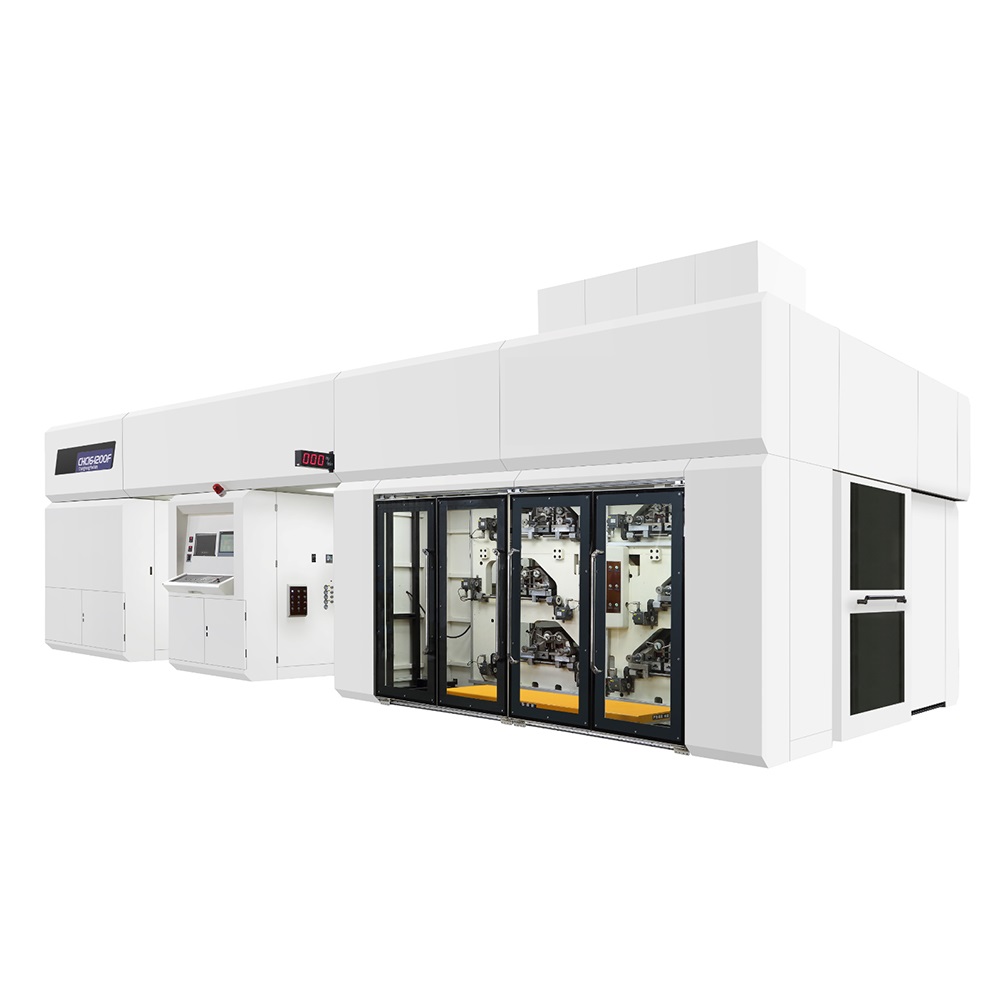

High Speed 8 Colour Gearless CI Flexo Printing Machine
Technical Specifications
| Model | CHCI8-600F | CHCI8-800F | CHCI8-1000F | CHCI8-1200F |
| Max. Web value | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing value | 550mm | 750mm | 950mm | 1150mm |
| Max. Machine Speed | 500m/min | |||
| Printing Speed | 450m/min | |||
| Max. Unwind/Rewind Dia. | φ800mm | |||
| Drive Type | Gearless full servo drive | |||
| Plate thickness | Photopolymer plate 1.7mm or 1.14mm (or to be specified） | |||
| Ink | Water base ink or solvent ink | |||
| Printing length (repeat) | 300mm-800mm | |||
| Range Of Substrates | LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon，PAPER，NONWOVEN | |||
| Electrical supply | Voltage 380V. 50 HZ.3PH or to be specified | |||
Function Description
- Double station unwinding
- Full servo Printing system
- Pre registration function
- Production menu memory function
- Start up and shut down automatic clutch pressure function
- Automatic pressure adjustment function in the process of printing speed up
- Chamber doctor blade quantitative ink supply system
- temperature control and centralized drying after printing
- EPC before printing
- It has cooling function after printing
- Double station winding.
Double Station Turret Unwinding
Tension control: Using ultra-light floating roller control, automatic tension compensation, closed loop control (low friction cylinder position Detection, precise pressure regulating valve control, automatic alarm or shutdown when the roll diameter reaches the set value)
