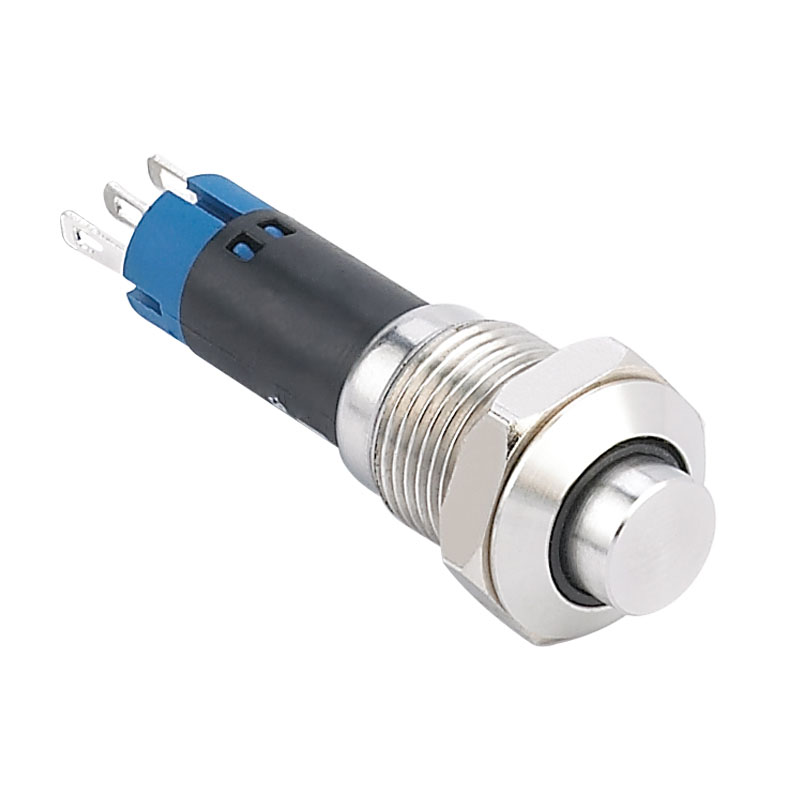

GQ10-KH-11/S
Important parameter:
1.Switch rating: Ui:250V，Ith:3A
2.Mechanical life: Momentary ≥200,000 cycles，Latching ≥ 50,000 cycles
3.Electrical life: ≥ 50,000 cycles
4.Contact resistance: ≤50mΩ
5.Insulation resistance: ≥100MΩ(500VDC)
6.Dielectric strength: 1,000VAC
7.Operation temperature: -25 ℃~55℃ (+no freezing)
8.Operation pressure: About 1.2N
9.Operation travel: About 2.5 mm
10.Torque: About 0.3Nm Max.applied to nut
11.Front panel protection degree: IP40
12.Terminal type: Pin terminal (1.8×0.4mm)
MATERIAL:
1.Contact: Silver alloy
2.Button: Stainless steel
3.Body: Stainless steel
4.Base: PA
