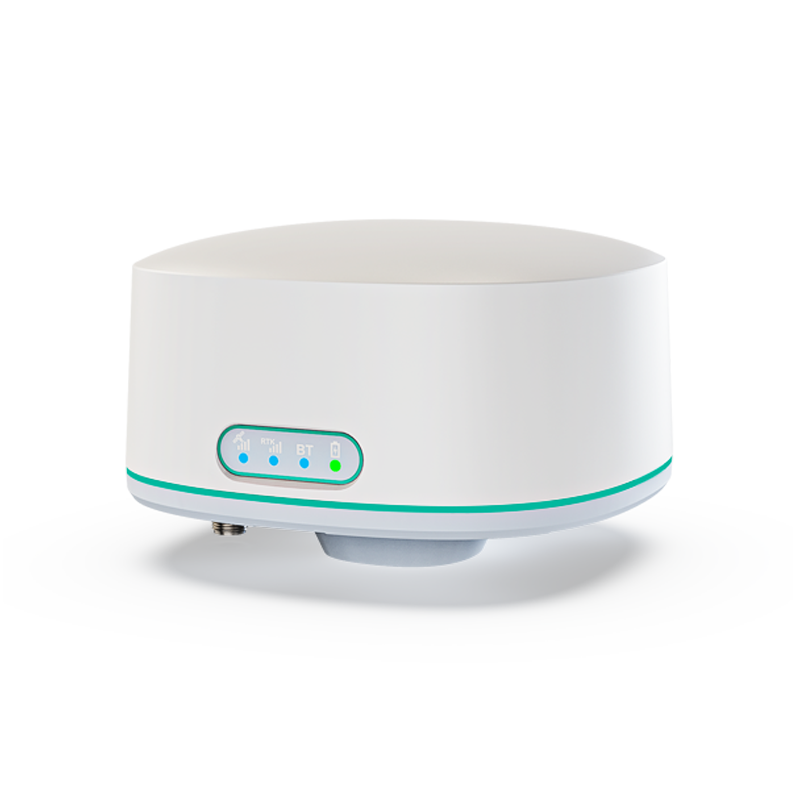

AT-B2
High Precision
Provide reliable and effective calibration data for achieving centimeter-level positioning accuracy.
Correction
Adopt RTCM data format output. Reliable UHF data communication, compatible with a variety of UHF communication protocols, can be adapted to most of the radio mobile stations on the market.
All-day Usage
Built-in 72Wh large-capacity Li-battery, supporting more than 20 hours of working time (typical), which is very suitable for long-term use.
Reliability
With IP66&IP67 rating and UV protection, ensure high performance, accuracy and durability even in complicated and harsh environments.
User-friendliness
Battery level can be easily checked through the power indicator status by pressing the power button.
Wide-range Operation
Built-in high-power UHF radio, broadcasting distance over 5 kilometers, eliminating the need to move base stations frequently.
Specification
| SATELLITES TRACKING | |
| Constellations
|
GPS: L1C/A, L2P (Y), L2C, L5 |
| BDS: B1I, B2I, B3 | |
| GLONASS: G1, G2 | |
| Galileo: E1, E5a, E5b | |
| QZSS: L1, L2, L5 | |
| Channels | 1408 |
| ACCURACY | |
| Standalone Position (RMS) | Horizontally: 1.5m |
| Vertically: 2.5m | |
| DGPS (RMS) | Horizontally: 0.4m+1ppm |
| Vertically: 0.8m+1ppm | |
| RTK (RMS) | Horizontally: 2.5cm+1ppm |
| Vertically: 3cm+1ppm | |
| Initialization reliability >99.9% | |
| TIME TO FIRST FIX | |
| Cold Start | ＜30s |
| Hot Start | ＜4s |
| DATA FORMAT | |
| Data Update Rate | 1Hz |
| Correction Data Format | RTCM 3.3/3.2/3.1/3.0, Default RTCM 3.2 |
| UHF CORRECTIONS TRANSMIT | |
| Transmission Power | High 30.2 ±1.0dBm |
| Low 27.0 ±1.2dBm | |
| Frequency | 410-470MHz |
| UHF Protocol | SOUTH (9600bps) |
| TRIMATLK (9600bps) | |
| TRANSEOT (9600bps) | |
| TRIMMARK3 (19200bps) | |
| Air Communication Rate | 9600bps, 19200bps |
| Distance | 3-5km (Typical) |
| COMMUNICATION | |
| BT (For setting) | BT (For setting) |
| IO Ports | RS232 (Reserved for External Radio Stations) |
| USER INTERACTION | |
| Indicator Light | Power Light, BT Light, RTK Light, Satellite Light |
| Button | On/Off button (Press the button to check the battery capacityby the status of the power indicator.) |
| POWER | |
| PWR-IN | 8-36V DC |
| Built in Battery | Built-in 10000mAh Li-ion battery; 72Wh; 7.2V |
| Duration | Approx. 20h (Typical) |
| Power consumption | 2.3W (Typical） |
| CONNECTOR | |
| M12 | ×1 for Power in |
| TNC | ×1 for UHF Radio; 3-5KM (Typical Non-blocking Scenario) |
| Interface for Installation | 5/8“-11 Pole Mount Adapter |
| PHYSICAL DIMENSIONS | |
| Dimension | 166.6*166.6*107.1mm |
| Weight | 1241g |
| ENVIRONMENTAL | |
| Protection Rating | IP66&IP67 |
| Shock and Vibration | MIL-STD-810G |
| Operating Temperature | -31 °F ~ 167 °F (-30°C ~ +70°C) |
| Storage Temperature | -40 °F ~ 176 °F (-40°C ~ +80°C) |
