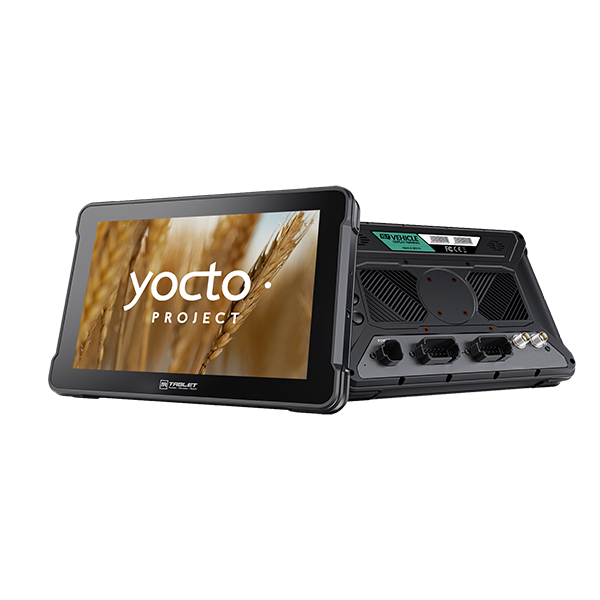

AT-10AL
High Brightness Screen
With 1000 nits high brightness screen, readable under strong sunlight.
Wet Touch and Glove Touch
Support wet touch and glove touch function, ensuring excellent responsiveness even when the operator’s figures are wet or they are wearing gloves.
Qt Platform
Qt platform provides a cross-platform C/C++ graphical user interface application development framework, which has strong scalability and is convenient for software development.
Real-time Communication (optional)
Built-in Wi-Fi/ Bluetooth /GNSS/4G functions. Easily track and manage the equipment status.
ISO 7637-II
Complied with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC8-36V wide voltage power supply.
Rich Interfaces
With RS232, RJ45, RS485, CAN, GPIO etc. extended interfaces for connecting peripheral devices.
Specification
| System | |
| CPU | NXP i.MX 8M Mini, ARM® Cortex®-A53 1.6GHz |
| GPU | 1× shader, Vivante GC320, Vivante GCNanoUltra |
| Operating System | Yocto |
| RAM | 2 GB LPDDR3 (Default)/4GB (Optional) |
| Storage | 16 GB eMMC (Default)/64GB (Optional) |
| Storage Expansion | Micro SD 128 GB |
| Functional Module | |
| LCD | 10.1 inch HD (1280×800), 1000 nits, Sunlight readable |
| Screen | Multi touch capacitive touchscreen supporting glove and rain mode |
| Sound | Build-in speaker 2W, 90dB |
| Internal Microphones | |
| Interfaces | Type-C, Compliant with USB 2.0 (For data transfer; Support OTG) |
| USB 2.0 (Type-A) | |
| 3.5mm headphone jack | |
| Sensors | Acceleration sensors, Ambient light sensor, Gyroscope, Compass |
| Environment | |
| Vibration Test | MIL-STD-810G |
| Dust Resistance Test | IP6x (IEC60529) |
| Water Resistance Test | IPx7 (IEC60529) |
| Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F） |
| Storage Temperature | -30°C ~ 70°C (-22°F ~ 158°F) |
