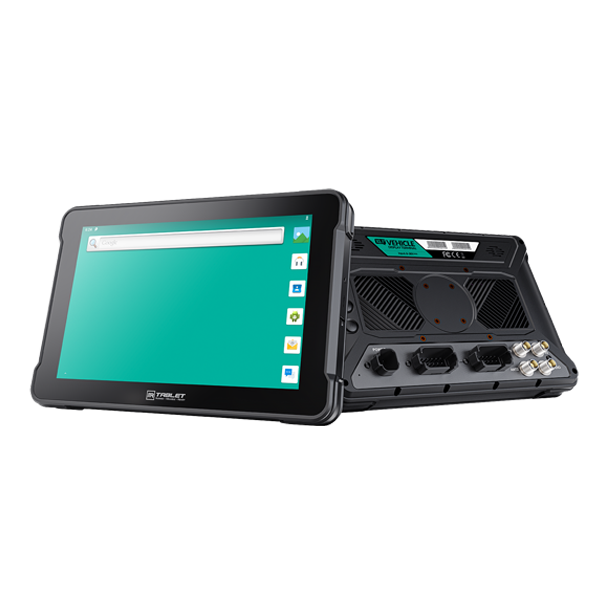

AT-10A
High Brightness Screen
With 1000 nits high brightness screen, readable in the sunlight environments.
Real-time Communication
Built-in Wi-Fi/ Bluetooth /GNSS/4G functions. Easily track and manage the equipment status.
High-precision Positioning
The built-in optional professional high-precision RTK module can achieve ±2.5cm accurate positioning, which makes the tablet perform well in precision agriculture.
Mobile Device Management
Integrated with MDM software, which is convenient for users to control the equipment status in real time and carry out remote control and management.
Rich Interfaces
With video input, RS232, RJ45, CANBUS, GPIO etc. extended interfaces for connecting peripheral devices.
ISO 7637 -II
Complied with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC8-36V wide voltage power supply.
Specification
| System | |
| CPU | Qualcomm Cortex-A53 64-bit Octa-core Processor,1.8GHz |
| GPU | Adreno 506 Support OpenGL ES3.1 |
| Operating System | Android 9.0 |
| RAM | 2 GB LPDDR3(Default)/4GB(Optional) |
| Storage | 16 GB eMMC(Default)/64GB(Optional) |
| Storage Expansion | Support Micro SD up to 512 GB |
| Communication | |
| Bluetooth | 4.2BLE |
| WLAN | IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz |
| Mobile Broadband | LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice) |
| GNSS | Standalone: 2.5m CEP |
| RTK(Optional): 2.5 cm+1 ppm Horizontally; 2.5 cm+1 ppm Vertically |
|
| Radio(UHF) | Optional |
| Functional Module | |
| LCD | 10.1 inch HD (1280 × 800), 1000nits brightness, Sunlight readable |
| Touchscreen | Multi touch capacitive touchscreen(Wet mode and glove mode are customizable.) |
| Sound | Build-in speaker 2W,8Ω 90dB |
| Internal Microphones | |
| Interfaces | Type-C, Compliant with USB 3.0, (For data transfer; support OTG) |
| USB (TYPE-A) | |
| Headset jack ×1 | |
| Sensors | Acceleration sensors, Ambient light sensor, Compass |
| Functional Module Environment | |
| Vibration test | MIL-STD-810G |
| Dust resistance test | IP6x(IEC60529) |
| Water resistance test | IP6x & IPx7(IEC60529) |
| Operating temperature | -20° C ~ 65°C (-4℉~149℉) |
| Storage temperature | -20° C ~70° C (-22℉~158℉) |
| Interface | |
| RS232 | ×2 |
| RS485 | ×1 |
| ACC (ignition) | ×1 |
| RJ45 (10/100) | ×1 |
| AHD input (optional) | ×2(1080P) |
| CANBUS | CAN 2.0b×2 |
| GPIO | Input×4, Output×4 |
| Analog input | ×1(Measure Voltage Range:0~30V) |
| Physical Characteristics | |
| Power | DC8-36V (ISO 7637-II compliant) |
| Physical Dimensions(WxHxD) | 273×183×49mm |
| Weight | 1.6kg |
