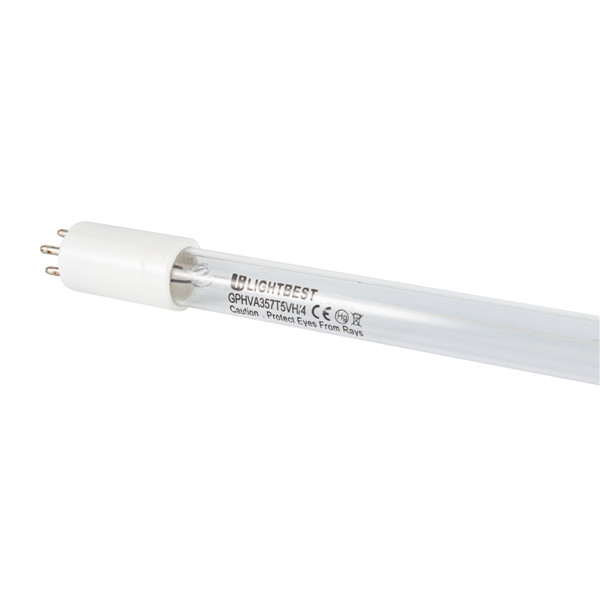

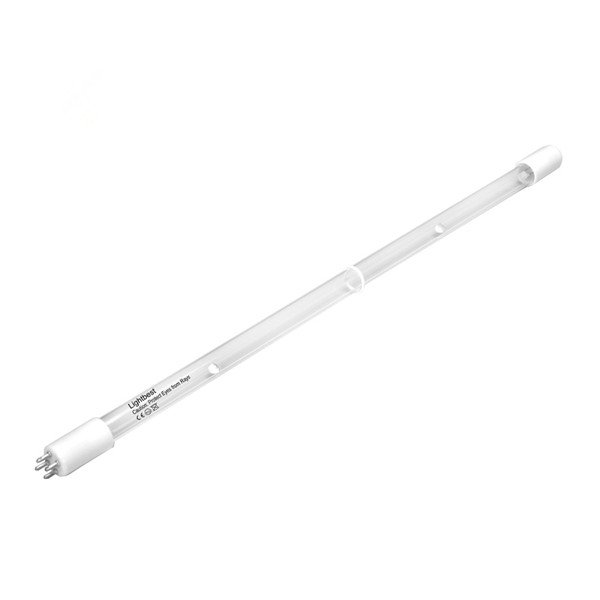

Amalgam Lamps Ultraviolet Germicidal Light

Introduction

provides high-quality low pressure amalgam lamps with good material and advanced process, including pellet amalgam and spot amalgam, from 30W up to 800W, which is one of leading technology in China and world. Amalgam lamps can be used horizontally and vertically. Special Coating-tech helps amalgam lamps last up to 16,000h, and maintain high UV output up to 85%.

Product Details

Product Tags

Model Number Lamp Dimensions(mm) Power Current Voltage at UV Output at 1 Meter Rated Life
Tube Diam Length Base (W) (A) 50/60Hz (V) (μw/cm²) (W) (H)
GPHA212T5L/4P 15 212 G10q 30 1.2 22 42 4 16000
GPHA357T5L/4P 15 357 G10q 42 1.2 36 110 11 16000
GPHA436T5L/4P 15 436 G10q 52 1.2 45 130 13 16000
GPHA550T5L/4P 15 550 G10q 69 1.2 55 160 16 16000
GPHA650T5L/4P 15 650 G10q 75 1.2 68 200 23 16000
GPHA843T5L/4P 15 843 G10q 105 1.2 88 250 35 16000
GPHA1000T5L/4P 15 1000 G10q 127 1.2 107 370 42 16000
GPHA1554T5L/4P 15 1554 G10q 190 1.2 164 500 68 16000
GPHA357T6L/4P 19 357 G10q 57 1.8 32 130 13 16000
GPHA436T6L/4P 19 436 G10q 72 1.8 40 150 16 16000
GPHA843T6L/4P 19 843 G10q 127 1.8 71 400 42 16000
GPHA1000T6L/4P 19 1000 G10q 150 1.8 84 460 50 16000
GPHA1554T6L/4P 19 1554 G10q 240 1.8 134 630 85 16000
GPHA1582T6L/4P 19 1582 G10q 305 2.0 158 800 115 16000
GPHHA357T6L/4P 19 357 G10q 65 2.1 32 140 14 16000
GPHHA843T6L/4P 19 843 G10q 172 2.1 80 490 53 16000
GPHHA1032T6L/4P 19 1032 G10q 180 2.1 88 550 61 16000
GPHHA1000T6L/4P 19 1000 G10q 207 2.1 100 570 64 16000
GPHHA1147T6L/4P 19 1147 G10q 200 2.1 92 580 66 16000
GPHHA1554T6L/4P 19 1554 G10q 320 2.1 154 750 105 16000
GPHHA1514T8L/4P 25 1514 G10q 230 2.6 88 540 76 16000
GPHA1514T10L/4P 260W 32 1514 4P-Diamond 220 3.0 76 550 78 16000
GPHA1554T10L/4P 330W 32 1554 4P-Diamond 275 3.6 78 690 96 16000
GPHA1514T10L/4P 335W 32 1514 4P-Diamond 293 3.8 77 635 89 16000
GPHHA1554T10L/4P 500W 32 1554 4P-Diamond 471 5.0 96 1100 155 16000
GPHHA1554T10L/4P 800W 32 1554 4P-Diamond 800 7.5 106 1400 200 16000
GPHHA1790T12L/4P 800W 38 1790 4P-Diamond 800 8.0 100 1700 240 16000
* All the above lamps can be made as High Ozone (VH) type 185nm
* Customized lamps to your needs

Features:

The enhanced output amalgam lamp provides a germicidal UV output that is three or more times that of a conventional germicidal lamp of similar length without sacrificing efficiency or lamp life.
The enhanced output amalgam lamp has an extremely long service life while ensuring high power output. Up to 10 times the UV power density of mercury lamps can be obtained, and they can be used at higher ambient temperatures.
Using an amalgam lamp can provide up to 90% of the UV-C output power. Due to its high efficiency, long service life and low operating costs, amalgam lamps are an alternative to mercury lamps. Depending on the type of quartz used, ozone-free or ozone-generating lamps can be provided.

Advantages

• High efficiency: UVC peak @253.7nm for disinfection.
• Wide application: Special Pellet Amalgam in over wide temperature
from 4 to 60°C.”
• Long life: Special coating for longer life than others.
• Free installation: Special Amalgam lamps can be used horizontally and vertically.
• Environmental: Minimized amount of mercury from Light-Best Amalgam.
• Stable UV maintenance: 80% UV intensity maintainable.
• Tailor-made or Customized lamps are possible.
• High-ozone type can be made to reduce TOC.
•Use fewer lamps for treating same water flow, to save installation and maintenance cost.
• Lamps can be printed by ink or laser (unfading).

Main Applications

• Municipal drinking water treatment.
• Waste water treatment or sewage disposal.
• Process water treatment and ultra-pure water system and other TOC-reduction.
•Swimming Pools & Aquariums
•Farming, Ranches & Agriculture
•Whole House Air Disinfection in HVAC, air duct & forced hot air systems
•Medical Facilities & Hospitals

Amalgam lamps-Horizontal Application
